Advanced Motor Endurance Test Equipment for Motors with Hysteresis Brakes
product description:

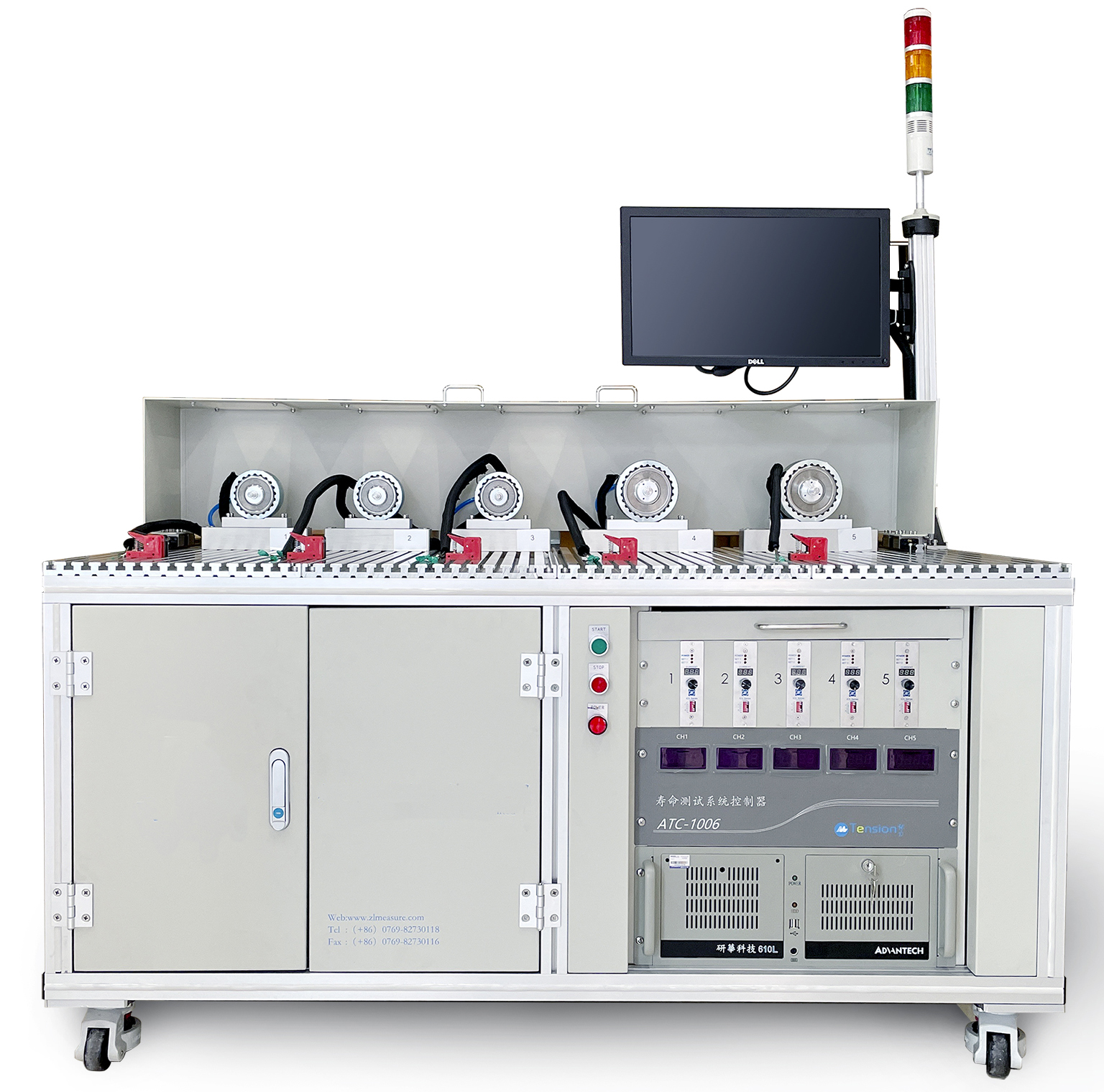

C0-MTHB-500LT is a 5-station customized life test system for the development and quality verification of carbon brushes for automotive motors using hysteresis brakes and a simulated load life test of the motor through the host computer program. Each station Can run independently without interference with each other, customers can set different test programs according to actual requirements and save in the database, the entire system can automatically run according to the set program, automatic judgment, automatic shutdown when found bad, test data can be connected to the mobile phone APP to achieve Real-time monitoring and testing process and data sharing in real time.
Features:
• The load is stable and adjustable, and the customer can set the simulated load according to the actual application requirements of the motor. The maximum torque is 1Nm.
• Collect the current and temperature parameters of the motor in real time through the controller and the host computer software.
• Different motor loads can be set by changing the brake current, and the working and stopping time of the motor can be arbitrarily set through the host computer software. The maximum working cycle is 999.99 million times, and the machine will automatically stop after the number of cycles is reached. If there is a problem, it will only automatically stop the operation of the station

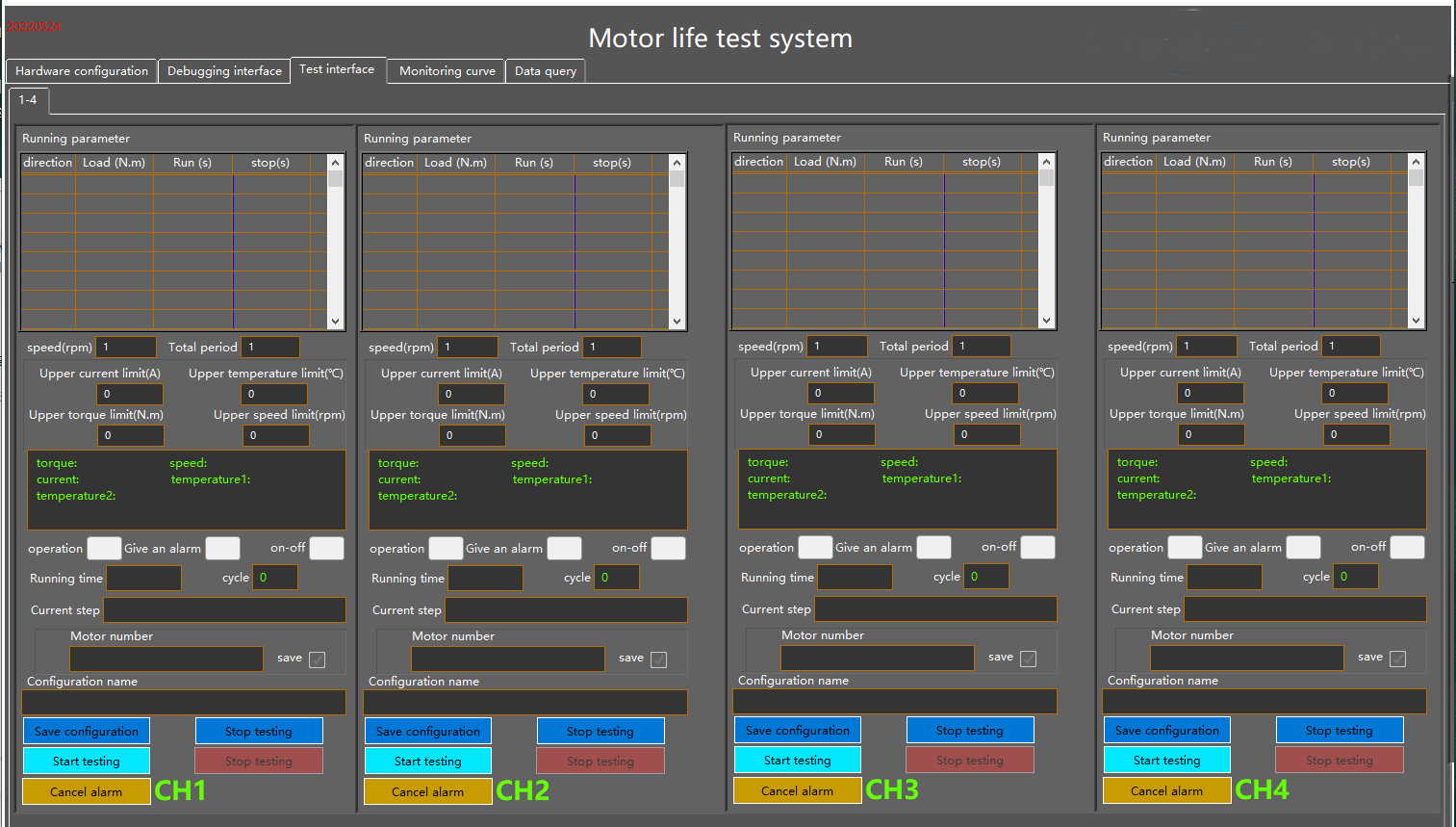

• The system has an engineer and operator interface. All test programs can be saved in the engineer interface environment. The operator only needs to call the corresponding test program according to different products and test requirements. It can also support the QR code scanning function and automatic identification. Call the test program, while facilitating traceability management of the process.
• Collect parameters such as current and temperature of the motor in real time. The system has protections such as overcurrent, overvoltage and short circuit.
• Can be connected with the database to save all test data, customers can call historical data for chart analysis at any time.
